Monday, January 23, 2012

Cone 6 glazes, bowls, tiles, and tomato sex!!


I have been doing a lot of glaze testing over the last few weeks.  Whilst this has been somewhat exhausting, I have gained a lot of useful information about some glazes that are good for around cone 6 to cone 7, let's say in the region of 1205 - 1230 Centigrade 2201- 2246 Fahrenheit, all depending on how quickly your kiln climbs up to temperature.

To suit my clay I am firing until cone 6 is completely down and cone 7 is starting to bend.  There is sufficient heat in the kiln to bring cone 7 down as the kiln is cooling.

Glaze tests and a commissioned set of bowls that I completed recently.
The most useful base glaze that I have found for cone 6 is a very easy to remember one. Danny Moorwood, a potter friend of mine recommended it, and I also found it on the digitalfire.com (glossy base glaze) site; as follows:
20 Wollastonite
20 Fritt 3134 (F 4108)
20 Potash Feldspar
20 Silica
20 China Clay

Danny uses ball clay rather than china clay.  I have been mostly using a 50/50 mix of ball clay and china clay.  The substitution of ball clay for china clay does slightly lower the maturing temperature of the glaze.  I use fritt 4108, as 3134 is not available here.  I think they are fairly similar though, essentially they are a soft borax fritt.

This clear glossy glaze fits the clay I use very well, with no sign of crazing.  I did also try two other variations on the glaze that digitalfire.com mention on their site, one was a low expansion version (to further assist in glaze fit) and the other was a satin version. To be honest I found neither as good as the simple one that I have recorded above.  Due to the high amount of clay in this glaze, it is possible to use it as a raw glaze on dry pots, and I have been doing this with some success.

Wollastonite is an interesting material, it is calcium silicate, and as such provides both calcium and silica to a glaze.  I suppose that it is really a natural fritt.  Wollastonite is used as a flux and has the advantage over calcium carbonate (whiting) in that it does not have to get rid of lots of carbon dioxide in the course of the firing, which can be a potential source of pin-holing in glazes.

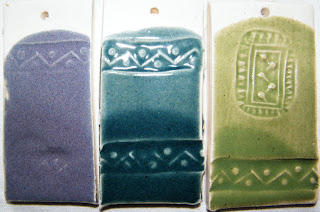

These all look very similar, but have significant changes to the base glaze.
As an experiment, I did a version of the glaze with fritt 4110 (an alkaline fritt), soda feldspar and increasing amounts of petalite, my aim was a more alkaline base that would give me blue-greens with copper.  It didn't..... In fact my variations made almost no discernible difference (as shown in the photo above), but a complete substitution of petalite for feldspar made for a crazed glaze that was not quite mature.


One simple test that was fun to do (and far more rewarding), was the one in the photo above.  On the right is the base glaze with 0.4 percent of chromium oxide.  In the center is the base with 0.4 chromium oxide, and 0.5 cobalt carbonate.  On the left is the base with 0.4 chromium oxide, 0.5 cobalt carbonate, and 4 percent tin oxide.  The tin oxide is trying its best to make red from the chromium oxide, but the cobalt blue is making the red turn violet.

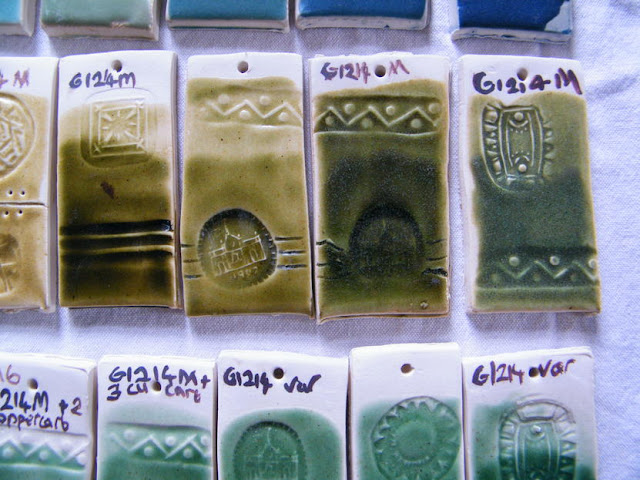

I also did a variation with increasing additions of dolomite.  The dolomite was to encourage some little crystals to grow in the glaze to make it more interesting to look at (a bit like looking into a rock pool at the beach), you might be able to see this process in the main sequence of tiles in the photo above.

The first complete tile on the left of the photo has a green translucent glaze that you can see right through even though it is fairly dark.  The glaze has 3 percent copper carbonate and two percent iron in it, but no dolomite. The tile to the right of it has 5 percent dolomite added to the glaze, which lightens it a little, and the one to the right of that has 5 percent more dolomite, notice how the glaze gets darker again, and there is a dusting of tiny pale crystals over it. By the time we get to the tile at the right end the glaze is looking a sugary and paler blue-green colour. This tile has15 percent dolomite added to the glaze.  I used the 10 percent dolomite version of this glaze to put on some bowls that I was commissioned to make someone recently.


It is always good to try the effect of putting one glaze over another, and it is especially good to try this when you are doing test tiles in a controlled and orderly sort of way.  When I am glazing pots I often put one glaze over another, and frequently cannot remember afterward what glazes I combined together in this way!  I always mean to write it down, but forget every time!  The combination in the photo above is chrome-tin red over "floating blue".  On its own the floating blue came out rather a muddy grey-brown for me (the sort of colour that a child's paint box goes if all the colours are muddled up together), but this was transformed into a lovely blue where the red glaze flowed over the top!


under-glaze.  The iron glaze tends to bubble up through the top glaze, and both go for a slide and create the lacy pattern that you see.

chrome-tin red on a 9 inch bowl (230mm).

One of the most exciting cone 6 glazes that I tested, and have started to use, is the chrome-tin red that I found on June Perry's web site, shambhalapottery.com.  She has posted a wonderful collection of glazes there for cone 6 and for cone 10, and it is a great resource for any potter who wants to test glazes.  I have used the chrome-tin glaze in the bowl in the photo above.  It is a bad photo unfortunately, but you can see from it that the glaze develops an opalescent purple where it is thick, rather like the "bloom" of a ripe red plum.

The glaze is as follows:
21 Gerstley Borate
16 Nepheline syenite
11 China Clay
20 Whiting
32 Silica
5 Tin oxide
0.15 Chromium oxide

In my first test of this glaze I put in too much chromium oxide.... not sure how much, but I know it was wrong because my second batch is a much paler green when I apply it to the pot.  When it is fired, the first version of this glaze comes out a darker purple-red; the second "correct" batch is a much brighter red.  Nice purples can be made by adding very small quantities of cobalt to the glaze, or, if the chromium oxide is left out, good blues can be made with additions of cobalt.



I glazed up some goblets and used the chrome-tin red on a number of them. One other splendid characteristic of this red is that it does "break" nicely over detail, so the throwing rings of the goblets show up well. The blue version of this glaze also shows detail well too.


I have been experimenting with some 4 inch tiles.  I have spared little thought for the tourist trade over the years, most of the time I have been fully absorbed in my task of learning to make pots, kilns, and other important things, but it is also a good idea to try to stay afloat financially, so......


I thought that sheep, cows, and kiwis would be a good start.  Here I am just incising a design into a leather hard tile with a couple of wooden tools and a needle.  Over the top I put a clear glaze with a bit of copper and iron in it.


I do like old Persian pottery, and I copied part of a Persian design when I decorated the tile below.  I have done hardly any under-glaze type decoration before, so it seemed a good way to practice.


Laura has been helping in the studio lately, and she made tiles too, and most of the test tiles.  She decorated the tile below whilst I was doing my "Persian" one.


It is supposed to be summer here, but has been quite cold and un-summery the last two days.  There was even talk of snow on some of the high hills....  In spite of all that, we have a very large crop of plums ripening on the trees in our garden, and these show in the photo of the lily that Laura took recently (below).


My tomatoes are heading towards being an expensive failure.  They did grow, but few tomatoes have shown any sign of setting.  Now that the weather is getting chilly, we will be rather lucky to have anything from them.  Anyway, in desperation I did some research into the personal habits of tomatoes, and found out that they are supposedly self fertile, but the flowers do need to be shaken around a bit, and the best time is the middle of the day!  So...., I have been out amongst the tomatoes around noon each day, giving them as much encouragement as I can!  I call it tomato sex, and I really hope that they enjoy it enough to make some baby tomatoes!

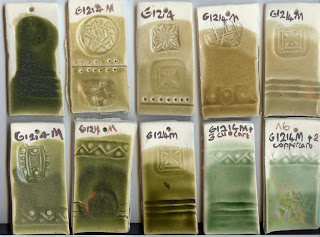

One useful discovery that I have made is that it is possible to use a scanner to record the glaze tests (one advantage of doing tests on flat tiles).  I also was able to record the recipes by flipping the test tiles over and scanning the reverse side.  The only thing to be really careful of is of scratching the glass on the scanner.
I write all the recipes on the backs of the tiles before they are fired with a paintbrush dipped in a watered down mixture of iron oxide and manganese.


Anyway, hope some of that is helpful.  I have been working rather long days lately, basically from dawn to when I go to bed, so I have not been able to find much time to spend on the Internet.  I am afraid that I am neglecting you all!
Kind Thoughts, P.

50 comments:

Cat's Ceramics said...

Absolutely fascinating! Thank you so much for sharing your tests! So helpful and very interesting. I love the Chrome-tin Red- very beautiful.
Happy tomato sex!!

Anonymous said...

to protect the glass of the scanner get an overhead projecter transparency... it's clear + thick enough plastic that it shouldn't effect the scan quality I think...
the bowls look awesome. :-)
Gotta run, have an exam later :S
Eleanor

(ps. merry christmas... it's a bit late but yeah i've been a slacker *i mean a forgetful studying person*)

Peter said...

Hello Cat,
The Chrome-tin red is a real treasure, I'm looking forward to trying it over coloured slips and doing some other minor tweaks with it. I'll play sweet music to the tomatoes, I think that might help them!

Hello Eleanor,
Happy Christmas to you to, and New Year... Don't worry about slackness, it is lovely to hear from you whatever the time of the year, and... I've been utterly hopeless this Christmas with not cards going out to people. Just soooo busy all at the wrong time. Feel bad about it, but... Great idea regarding the overhead projector transparency, thanks for that, I'll definitely use a transparency next time I try scanning the tiles. With ideas as good as that you'll pass your exams with no problems! Good luck with it all.
Love from Peter & Laura xx

Laura said...

Very, very interesting. Congratulations!

Linda Starr said...

Beautiful results and love Laura's and your tiles, that chrome tin red is great, June has a great web site.

Michèle Hastings said...

you definitely got my attention with the "tomato sex" title! I hope you get some babies soon.

you have been busy... i leave the glaze testing to Jeff, but I really should start doing more on my own. When we moved to NC we discovered that between the two of us we probably have a life time supply of wollastonite. None of our ^10 glazes use it! Our plan is to mix up some ^6 glazes and some electric firing. Thank you for sharing your tests.
Love the goblets!

Anonymous said...

pity that question didn't come up in my exam... Hopefully i said enough to pass, it's hard to tell here... will see in Feb if I did ok. At least I have an excuse for failing (if I do). I mean who does tertiary exams in a foreign language less than 3 years after starting to learn that language?!? :P ah I'm a little crazy. Just 1 more to go! I will then have to catch up on my emails.

Eleanor

Angie said...

As you know the technical side is alittle beyond me but your results are again stunning ...those bowls I hope, are appreciated by the purchaser... they are gorgeous. The tiles are amazing ....love the fun factor of the cleverly sculpted animal ones ...and the touch of art nouveaux with a hint of the continental, ones are brilliant too. How lovely that you shared this task.

As for Tomatoe sex lol ....I start with the highest flowers and brush them with my finger tips or palm and then work down, ending at the top again ...this way pollen is distributed all over. I do this every few days when the flowers are blooming and have a 75% setting ...except for the odd plant that seems infertile!!! and nothing sets.xx

DirtKicker Pottery said...

Fantastic glaze testing and detailed info. Now I'm really inspired to start some glaze testing. Thanks for an awesome post.

Interesting fact about growing tomatos ;)

Melissa Rohrer said...

Appreciate the information. I would like to experiment with those purples, although that might interfere with my resolution to whittle down my glaze choices.

cookingwithgas said...

all this and time to fondle tomatoes! You are a busy man.
I am doing some lower fire glazing/firing but it seems to me I need a good cone 5 recipe any suggestions on lower the temps to 2185?
I would love a good base and go from there.
One day soon I hope to explore this temp range.
Shake it up! I had always heard that tom's like at least 50 degree's at night to set fruit... maybe a bedding down along with the shaking?

smartcat said...

Hi Peter....we used a varient of this glaze in my old pottery co-op. We named it after the member who brought it to us.....she may have been responsible for the variation......this was over thirty years ago! We fired it from ^6-^8....looked good at all those temps.

Jane's Base:
Frit 3134.........1000
Dolomite.........1000
Spodumene.....1000
Ball Clay..........1000
Flint................1000

As I recall it's a most forgiving glaze which is excellent for beginners. Those who worked at ^6++ developed lots of variations. Superpax and/or tin and rutile with oxides made many interesting variations. (EX: Warm Green....500 pax; 150 dark milled rutile; 150 copper carbonate. The rutile gives it a nicely mottled appearance)

You have a good set of tests...lots to think about.

(my word verification is fartion....no comment!)

Linda B said...

Lovely glaze tests. The reason you don't get turquoise blue from copper is that the alumina is high -you would have reduce it to 5 or 10% to get turquoise.

Armelle said...

Beautiful glazes Peter, they are really nice, I love them all and specially on the gobelets, your red chrome.
Must go now, I will send you "my chün recipe" by mail soon, as I go away tomorrow.

Best wishes

HENHOUSE POTTERY said...

Hi Peter! I use a similar Cone 6 base glaze. I found that adjusting the Wollastonite but keeping the firing temperature consistent gave me a more matte glaze, which was fun to experiment with.

Your garden looks lovely! I am sitting watching it snow and feeling quite jealous...

Peter said...

Firstly, a big thank you to you all for writing in, and welcome to those of you writing a comment on this blog for the first time.
It was really good to have helpful suggestions regarding pottery, and tomato sex!!

Eleanor's idea of using overhead projector transparency for protecting the glass on a scanner when scanning test tiles is one that I will adopt straight away.

Thank you Linda B for the information about alumina needing to be low in glazes to achieve turquoise from copper. That does explain a lot, as there is considerable alumina in this glaze because it contains so much china clay. If I had really thought things through I should have remembered that the lovely runny Persian copper blue glazes that I admire so much on Iranian 12th - 13th Century pots were low alumina glazes. It will be interesting as a little exercise to do some "unscientific" line tests and see if I can reduce the clay content of this glaze to the point where I achieve a copper turquoise, whilst still maintaining a useful, practical glaze.

Thank you Smartcat for sharing a variation of this glaze base. It great that it worked right up to cone 8, which certainly makes it a most useful, and forgiving glaze for people with kilns that may have cool spots. I loved your word verification word... some of them are really collectible!!

Meredith (cooking with gas) and Angie both gave good nuggets of information regarding the romantic side of tomatoes. Meredith, I did wonder if the nights are getting a little cool here (which is frustrating as we are supposed to be enjoying summer!!), but I am not sure of the temperature that we are actually dropping to, it just feels like frost is almost a possibility some mornings! I think I'll have to supply a nice blanket for the plants to snuggle up in.

Angie, at 75% success rate with your tomatoes, I think you must have the magic touch!!

Armelle, your chün recipe would be much appreciated, thank you.

Best Wishes to you all, I must dash now and throw an enormous pot on the wheel! P.

Peter said...

Hi Julia (Henhouse Pottery,
Good to hear from you (you must have been writing as I was putting together my comment), adjusting the Wollastonite does sound well worth a try. It is exciting being able to extend what a simple base glaze will do. I also suspect that doing some slow cooling may be worthwhile to explore, as the Wollastonite should give some calcium crystals. I had some nice things happen to glazes that are on the bottom shelf of my kiln, where it tends to cool more slowly than elsewhere. I'll put some more flower photos up soon to encourage those of you that are "blessed" with snow! P.

Mieke van Sambeeck said...

what a load of information thank you so much, and now finding the time to try some out, I usualy try new glaze samples in every firing!
So these wil keep me busy for a while.

Peter said...

Hi Mieke,
Lovely to hear from you. Time..., a most valuable commodity, certainly a good idea to put new glaze samples in every firing (probably much saner than doing a huge lot all at once!!).
I'll be most interested to see any variations on the glazes that you try.

This morning, in a Ceramics Monthly (of 1981), I found an article about the variation of the glaze that Smartcat mentioned in her comment. It was most interesting to see the many combinations of oxides that had been tried with the glaze. It is certainly a well proven glaze base and very useful for mid fired temperatures. A small addition to the amount of frit could drop the maturing temperature to cone 5.

angela walford said...

ab fab peter loving the iron bubbling thru the white glaze is that like a tenmoku with a chun over??? prob not at cone 6 though.... love the hares fur look!!'
and great timing with the arrival of my wee electric kiln i was about to embark on some c6 tests....really intrigued with the overlapping of glaze combos v nice work peter!!!!

gz said...

I'd look at Mike Bailey's book on cone 6 glazes

Peter said...

Gidday Ang,
You're right with the iron bubbling through the white glaze. It is cone 6, and I'll send you the glaze combination for you to try when I next fire up my computer and have the glaze tests handy. The overlapping glazes are really very interesting, and I'm sure that there's a huge lot of possible things to try with that for cone 6.

Hi Gwynneth,
I'm promising myself a copy of Mr Bailey's book if I am on my best behavior this month! It looks a really useful book and I have been reading reviews of it for the last few weeks. Good of you to recommend it.

angela walford said...

hey thanks peter that would be great....the testing begins :))

Tiles and Pots said...

Hello Peter,
I stumbled upon your blog while doing a search on the web. What a great source of information you have here.
I love the green glaze test tiles you got.
You mentioned you used frit 4110 instead of 3134. I usually use 3134 like in the recipe. Do you think the glaze will look similar with 3134 and what if I use a different feldspar. I guess I have to do some testing. (not my favorite part of the process.)
Another question I have: I am doing a large tile project. Usually I make the tiles out of a cone 6 porcelain clay but the customer wants them in a red clay. I have never used red clay for tiles and so I don't know what glazes to use and whether I should make them out of terracotta or a cone 6 clay. They have very specific colors they are looking for: teal, olive green, mustard yellow, Indian red, aubergine. Since the tiles are in relief the glazes need to show the design so an opaque glaze would not work well here.
Do you have any suggestions for glazes that work well on red clay that show off the designs well either low fire or cone 6 would be OK with me.
Thanks so much,
Chaya.

Peter said...

Hi Chaya,
Good to hear from you, and welcome to my site. I did do some testing of the glaze recipe that has 4110
where I changed the feldspar and found little difference between Potash Feldspar or Soda Feldspar in the limited testing that I did. With copper carbonate for the green, I really struggled to detect a difference between the two feldspars.

As far as changing the frit, I haven't tried as yet. I know that 4110 is an alkaline frit and has a lot in common with 4124. I seem to remember that 3134 is a borax frit and has a slightly higher maturing temperature than 4110. You may find that makes a slight difference in the amount of gloss that the glaze has at cone 6, or it might make no difference at all! You might also see slight differences in colour response when using oxides and stains, however I suspect that this glaze base is reasonably "forgiving" of substitutions like the one you are proposing. The glaze will also tolerate quite a temperature range, so far I have taken it from about cone 5 where it is a bit "underdone" to just over cone 7, where it is perfectly happy. I note that Smartcat (who commented on this post) had an interesting variation on the glaze, and wollastonite has been replaced by Dolomite, and 4110 has made way for 3134, so do give it a try.

Regarding the red clay commission, I am full of sympathy, I always seem to be asked to do things that I don't currently do...., this is always very educational, but it does mean lots of extra testing. Moving to a red earthenware clay will very likely mean that you will have to glaze fire to somewhere between cone 04 and cone 02, this would mean a lot of testing of glazes to get one that fits your clay at that temperature. Your clay supplier may know of a commercially made clear glaze that is designed to fit your clay, and this could save you some time. You could adapt this by adding zircon for opacity, and oxides or stains for colour.

If you are currently working at cone 6, and already have some glazes that are "good friends" at that temperature, I would stay with that if you can and and try to find a clay that will give a good red at that temperature.

I've just had a quick search of cone 6 red clays and see that Laguna clays do a WC-420 Redstone clay that may be the sort of thing that you are after.

A glaze base such as the cone 6 one that I have been playing with in this post, is certainly a good starting point for a glaze that will do the things that you want. I noticed that most oxides that I tried show detail very well, and some give an attractive "break" over detail. Some stains are less helpful, as they can make things rather opaque.

Not sure if any of the above is very helpful.. I don't feel that I have been able to offer an easy "quick fix", and what ever you do will almost certainly require lots of testing! Good Luck, and do report back with your progress. P

Tiles and Pots said...

Hello Peter,
Thanks for all the info. I will definitely try this glaze recipe with the copper carb. the green I am currently using is one I mix up myself but it sometimes crazes and gets pinholes. I'll post the recipe when I get a chance.

As far as the red clay, I was also leaning towards sticking with a cone 6 clay. And yesterday I got in touch with another tile artist that I found online and she recommended the sculptural series by Georgies. They have some really beautiful glazes. I hope they look good on Bas relief. She said they do.
The opening of the show is tomorrow evening and My husband and I are going with some neighbors. I'm looking forward to seeing all the great cups and mugs.
Thank you once again.
Happy potting :)
Chaya.

Peter said...

Hello Chaya,
Thank you so much for getting back in touch. It will be very interesting to see what you do with the tiles. Good luck with the exhibition, it will be fun to see everything on display, and always nice to see lots of cups and mugs on show.
Best Wishes, P.

BOUTRIACK said...

Hi Peter I'm novice in glaze making. On one of your green sample,(the first one on the first row on the left side), you write PU..2.. can you tell me what PU means?

Thank you

Peter said...

Hi Boutriack,
Good to hear from you. My writing is terrible and even I have difficulty understanding it sometimes...., so what you thought was a P was really an R! RU 2 is rutile 2!

Hope that helps. Good luck with your glazing. P.

RichKnobSales said...

Not sure what happened to my comment! Anyway, I was loving the turquoise tiles and would love the formula for them. Thanks in advance!

Amy

Peter said...

Hi Amy,
Sorry you had difficulty posting your comment, I did receive them both, but I have comment moderation enabled for old blog posts like this so that I can keep track of things.

If my memory serves me correctly, the two torquoise tiles in the bottom row of the photo were the basic cone 6 glaze base:

20 Wollastonite
20 Fritt 3134 (F 4108)
20 Potash Feldspar
20 Silica
20 China Clay

plus a glaze stain that I happened to have at the time, I'm guessing that I used about 7.5 percent. I'll have a hunt through my glaze samples later and see if I can add some more details to this. One good thing about this cone 6 glaze base is that it seems very forgiving, fits clay well, you can fire it a bit higher than cone 6 if your kiln is uneven, and it also behaves well when stains or other metal oxides are added.
P.

Peter said...

Hi Amy,
just checked my cone 6 tests, the turquoise one was the base I gave plus 5 percent turquoise stain. I am assuming that you are asking about the two turquoise tiles on the bottom row of the first photo on this post?

I looked for further information about the turquoise stain on my supplier's web site, but it is just listed as turquoise 1300 + Centigrade, but no manufacturer's details given.

P

jim robertson said...


hi peter jr pottery here looking around to see if I whould should try some cone 6 glaxes thanks fantistic page.

Peter said...

Thanks Jim, I'm glad that you found the page helpful, P

Anonymous said...

What wonderful products. you make really beautiful things, all those patterns, figures and so pretty colors.

Peter said...

Hi "Anonymous",
Thank you for your kind words. I am glad that you enjoyed having a look at the blog. P.

Anneke Knegtmans said...

Hello Peter,
I'm an amateur potter. Stopped for 10 years due to work. Now I'm back since I'm retired from work and trying to find my way into the beautiful glazes people use these days. I love the red/blue glaze you showed and will certainly try it. I was looking for a base glaze to fire at cone 3 but don't know if that is possible as I only find low firing to cone 01. Then it jumps to cone 6 and higher. Would it be possible to lower the firing range of this glaze you are using?

Anneke Knegtmans, Napier

Anneke Knegtmans said...

Hi Peter, Anneke again here. Just forgot to ask if the base glaze you use is for oxidation or reduction firing.
Thank you.
Anneke Knegtmans, Napier

Peter said...

Hello Anneke,
Good to hear from you, welcome to my blog. Really nice to hear that you are finding your way back into potting again now that you are retired.

I have found cone 3 and cone 4 quite a good temperature range to work with. Our local earthenware clay from the Dunedin area is very happy at cone 3, which is high for a traditional earthenware (at cone 4 it is slightly over fired).

One really easy approach for a start would be to try some Abbots Clear glaze. Used really thin this seems happy enough down to cone 3 in my experience, and does fit our clay well too. From memory, I think I was using about 1.2 - 1.3 ltrs of water per 1000 gms of Abbots clear. I mostly dip my glazes. It isn't strictly necessary to add anything to Abbots Clear, but I do sometimes add a little ball clay, or bentonite. This assists suspension of the glaze in the glaze bucket, and makes it easier to apply to the pot, and more resistant to bumps before it is fired. 2 or 3 percent bentonite would be enough, or maybe 5 percent ball clay. Be a bit careful though, as adding these may slightly lift the maturing temperature, and you are towards the bottom end of that at cone 3. I don't know what suppliers you have in your part of the North Island, but, if you can't find Abbots Clear locally, just visit www.cobcraft.co.nz and you can buy it online.

As you will know, a clear glaze, such as Abbots Clear, can have other things added to it to give it colour or to make it opaque. You can experiment with iron oxide, copper carbonate, or cobalt carbonate, and maybe add about 10 percent zirconium silicate over darker clays for opacity.

Rutile is often useful in glazes to add some interest, and works particularly well with copper carbonate. I find about 2 percent rutile and 1 - 3 percent copper carbonate quite a good starting point.

I have also experimented with making my own glazes from scratch for that temperature range, and it certainly can be done. You can do it scientifically with glaze software, or do it by experimentation. Mostly it is simpler to start with a frit, such as 4124, or 3110, then add about 10 percent china clay, and probably some silica to improve glaze fit.

Something like 80 percent frit, 10 percent silica and 10 percent china clay would be a start. You would test that on a small test tile, and see if it fired glossy and clear, if it crazed, or if it looked opaque and underfired. Then you would make adjustments.

Good luck, and do report back with progress.

Best Wishes, Peter

Peter said...

Hi Anneke,
I just found your oxidation/reduction question, sorry about the delay! The base glaze is for oxidation. P.

Dorota said...

Hello from Cracov in Poland! I love artists and your pottery. You live so far away from my country but welcome to my angellum.pl, I've made few bowls. All the best! Dorota

Peter said...

Hi Dorota,
Good to hear from you all the way from Poland. There is quite a big Polish community here in Dunedin NZ. Best Wishes, P.

Josh said...

Hi Peter,

I'm currently a high school student in Canada and I was lucky enough to stumble across your blog! I have been looking for a cone 6 hare's fur glaze and your amazing chun glaze over tenmoku seems to be the only one that I can find that fires at cone 6. Most hare's fur and oil spot glazes that I've found require the oxidation of Fe2O3 to FeO and that doesn't really happen until cone 9 or 10. I'd be really interested to see if this works in my high school kiln (since I only have access to an electric kiln that goes to cone 6). Would you be willing to share the recipe for these two glazes with me?

Josh

Peter said...

Hi Josh,
Good to hear from you, welcome to my blog.

Regarding the chun glaze over tenmoku, that chun is really a cone 9 - 10 glaze, so I have not personally fired them at cone 6, however a few years ago someone called Mike did write in to say that he had managed to get the chun to fire at cone six by adding a small amount of lithium carbonate to the glaze and the underglaze.

In the comments that followed my blog post about chun glaze that I wrote in 2009
http://opopots.blogspot.co.nz/2009/03/chun-glaze.html#uds-search-results
Mike wrote:
"i converted this to cone 6 (both the glaze and underglaze) using +.25 lithium Carbonate and +10 cluster feldspar. turned out incredible in oxidation and my 30 pieces sold out at my colleges pottery sale. ive also been adding colorants to this and it turns into a great base high gloss glaze.
May 1, 2011 at 9:23 AM"


Anyway, here are the two glazes that I have used between cone 9 and cone 11 to give a blue chun:

(The blue chun effect is best achieved by using two glazes, an almost clear one over one that is very dark.)

The top glaze part of the chun is as follows:
Potash Feldspar 46
Dolomite 6
Zinc Oxide 6
Whiting 10
China Clay 2
Silica 30
(I usually add 1-2 percent bentonite to this to make it easier to apply).

This glaze is put over an iron bearing glaze and will form a blue chun effect if put over an iron bearing glaze or slip. On its own it is a slightly milky to clear glaze, becoming more clear towards cone 9.

A suitable iron bearing glaze would be:
Silica 41
Potash Feldspar 34
Whiting 16
China Clay 9
Black Iron Oxide 10
Many other glazes with about this level of red or black iron oxide will do just as well, it is worth experimenting.

Sorry not to be able to give much advice about cone 6. I have noticed some really interesting looking cone 6 glazes on www.fetishghost.blogspot.com There is a glaze there called "bonemarrow glaze" that looks quite like some of the oil spot glazes
www.fetishghost.blogspot.com/2010/03/cone-6-bonemarrow-glaze.html
Also, on the same blog, there is a cone 6 glaze called Blue Hares Fur that looks a bit like my chun
www.fetishghost.blogspot.com/2009/06/variation-of-blue-hares-fur.html

Best Wishes, P

Ki2020 said...

Hi my name is Ki from the United States. In my ceramics class we have to start making our own glazes which is what brought me to your blog. I found it very insightful and helpful. I was wondering if you would be willing to share the two glazes that form the layered glaze with the iron bubbling through the white. Please. Thank you for all the information you have already shared!

Peter said...

Hi Ki,
Good to hear from you, I'm glad that you are finding the blog helpful. The layered glaze that you ask about can be very runny when it is fired so do take care to protect kiln shelves. It would be good to test it on the inside of a small test bowl first.

I think the dark underglaze may be one by Brian Gartside, a New Zealand potter, and the white overglaze is by John Britt. Both are for Cone 6.

The dark underglaze was as follows,
Frit 4108 28.6
China Clay 28.6
Nepheline Syenite 14.3
Silica 14.3
Talc 7.1
Whiting 7.1

+ Red Iron Oxide 10

.. and the white overglaze
Potash Feldspar 30
Gerstley Borate 30
China Clay 5
Silica 25

+ Zircon 10

(Note that Frit 4108 is somewhat similar to Ferro frit 3134, it is a low alumina high calcium boro silicate frit. You might be able to substitute 3134 for 4108 if that is what you have available).

Good Luck! P

Anonymous said...

Hi, awesome work~ I'm wondering about your use of chrome in food safe work. I've been told by teachers that chrome is highly toxic, is it really okay to use it in a bowl?

ep

Peter said...

Hi Anonymous,
Good to hear from you. You ask a very good question.

It is always wise to question the use of any of the heavy metals that are in common use in glazes. Almost all of them are poisonous! It is possible to use most of them safely, and it is possible to make unsafe glazes too!

Chromium oxide is a highly toxic oxide, as are cobalt, nickel, copper, cadmium, manganese, and so on... Probably iron oxide is the only truly safe one!

I have a few "house rules" of my own regarding the use of such things in glazes.

I like to limit the use of oxides in glazes that may come into contact with food and drink to no more than 2 percent in a glaze, and preferably less.
It is far more likely that a small amount like this will be properly bound into the glaze and will resist leaching.
(my chromium red is less than 0.5 of a percent in the glaze for example).

I make sure that the glaze is fired to the correct temperature. Under firing is avoided.

I prefer to use a glaze that has a sensible amount of silica and alumina in it.

In a food container where food may be stored for some time I will usually try to use a simple, none toxic liner glaze in the part that might contain food.

A cone 6 base glaze such as this one

20 Wollastonite
20 Fritt 3134 (F 4108)
20 Potash Feldspar
20 Silica
20 China Clay

is a very safe base to use for small additions of metal oxides, as the glaze has a sensible balance of alumina to silica, and should be resistant to crazing on a clay that is mature at cone 6.

Probably the greatest time of risk from metal oxides is when the potter is mixing the glaze and applying it to the pot. Don't eat your lunch when glazing, keep free of dust, and clean up well... including your hands!

Stellaria said...

Lovely glaze tests!
Quick question - can you recall how much "too much" of the chromium oxide you put into the Chrome Tin Red to get that lovely purple from your first batch? The red is pretty, too, but......well, rather boring in comparison to the purple bloom!

Peter said...


Hi Stellaria,

Good to hear from you. Ha, Ha, regarding "too much"?? I have a confession..., I have old shop scales that are great for 2 kg amounts of feldspar, but I struggle with measuring small quantities of oxides. I am probably fairly close to a gram or 2. My best guess is that I was using close to 0.5 percent of chromium oxide in that first batch.

You can easily make a really nice range of purples by adding a little cobalt to this glaze. I sometimes make up a quantity of the base glaze, split it in half. In one half I make the regular chrome-tin red, and in the other I make up the base plus 2 percent of cobalt carbonate. This makes quite a useful strong blue. Then I make a series of mixtures between the two. That part can be done by eye.

Also note.... Glaze thickness does play some part in how this glaze looks. If really thin, it can "break" to a really pale green, if very thick it can become more purple. I suspect that the boron in the Gerstley Borate is the cause of this. In a clear borax based glaze, there is a great tendency to get a cloudy blueish area where the glaze is too thick.

So, to sum up, try about 0.5 percent chromium oxide, and apply the glaze fairly thickly to get a purple bloom.

Do let us know how you get on! P
